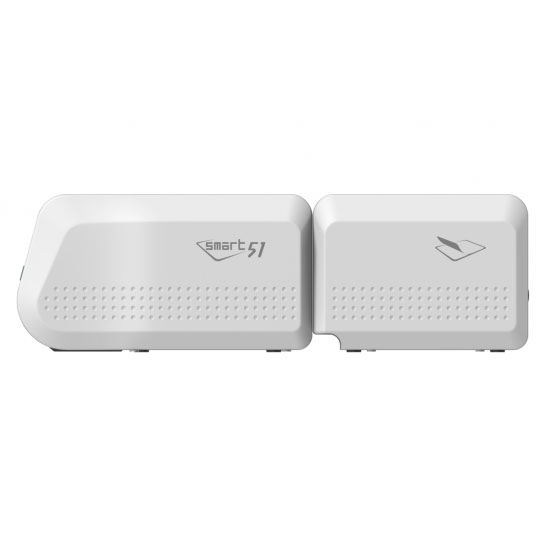

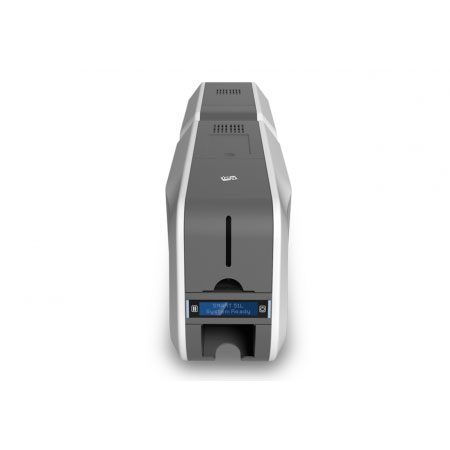

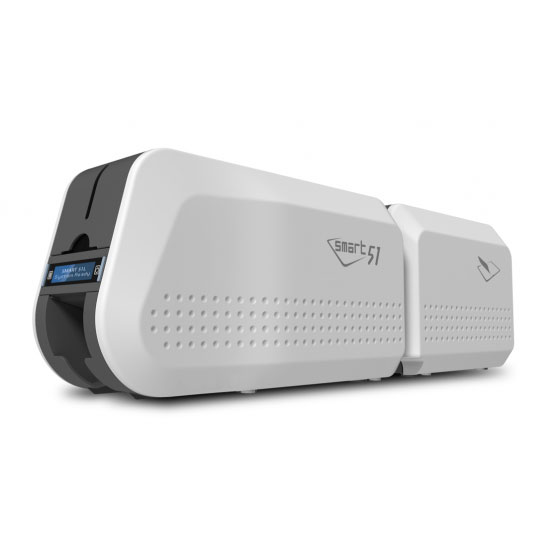

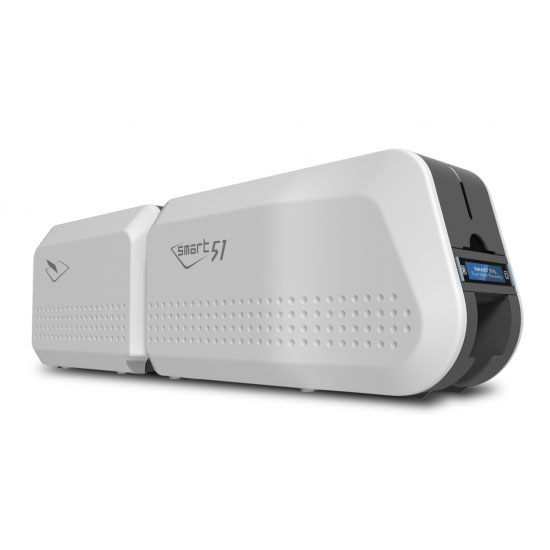

Smart CH 51L (Laminator)

Printing

• Print Mode: Dual Sided

• Print Type: Direct Dye-Sublimation

• Print Area: Edge to Edge

• Resolutions: 300dpi

Card

• Card Feeding: Automatic

• Card Size: ISO CR80 or ISO CR79 (Option-Factory installed)

• Card Thinkness: 0.38mm (15mil) ~ 1.0mm (40mil)

• Card Type: PVC, PET, Composite PVC

Print Speed

• Monochrome: 5 sec./card (720 cards/hour)

• YMCKO: Max. 17 sec./card (212 cards/hour)

• YMCKOK: Max. 22 sec./card (164 cards/hour)

Capacity

• Input Hopper (Card): 100 Cards / 200 Cards with cover open

• Output Hopper (Card): Front : 40 Cards / Rear : 100 Cards (Optional Rear-side Stacker)

Laminating

• Mode: Single & Dual

• Film (Clear & Holographic): 0.6mil, 1.0mil

• Speed (Simultaneous): 22 sec./card (YMCK, Single Lamination)

• Speed (Simultaneous): 32 sec./card (YMCKK, Single Lamination)

• Speed (One by One): 43 sec./card (YMCK, Single Lamination)

• Speed (One by One): 53 sec./card (YMCKK, Single Lamination)

System

• Memory: 64MB RAM

• Interface: 2 Line LCD / 2 LED Buttons

• Supported Platforms: Microsoft Windows 7/ 8 /10, Mac OS, Linux

• Communication: USB, Ethernet (Option)

• Power Supply: Free Voltage (AC 100/ 220V, 50~60Hz)

• Power Consumption: 96W

• Temperature: 15~35℃

• Humidity: 35~70%

Security

• Physical Lock: Input Hopper, Ribbon & Film (Option)

• Station Itself: Kensington Lock (Option)

Dimensions

• Milimeter: 165 (W) x 675 (L) x 210 (H)

• Inch: 6.5 (W) x 26.6 (L) x 8.3 (H)

Weight

• Kg/Lbs: Approx. 8.8 kg/19.4 lbs

Encoding Option

• Magnetic: ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II

• Contact: ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card

• Contactless: ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica

Certifications

• Certifications: CB, CE, FCC, KC, CCC
